Description

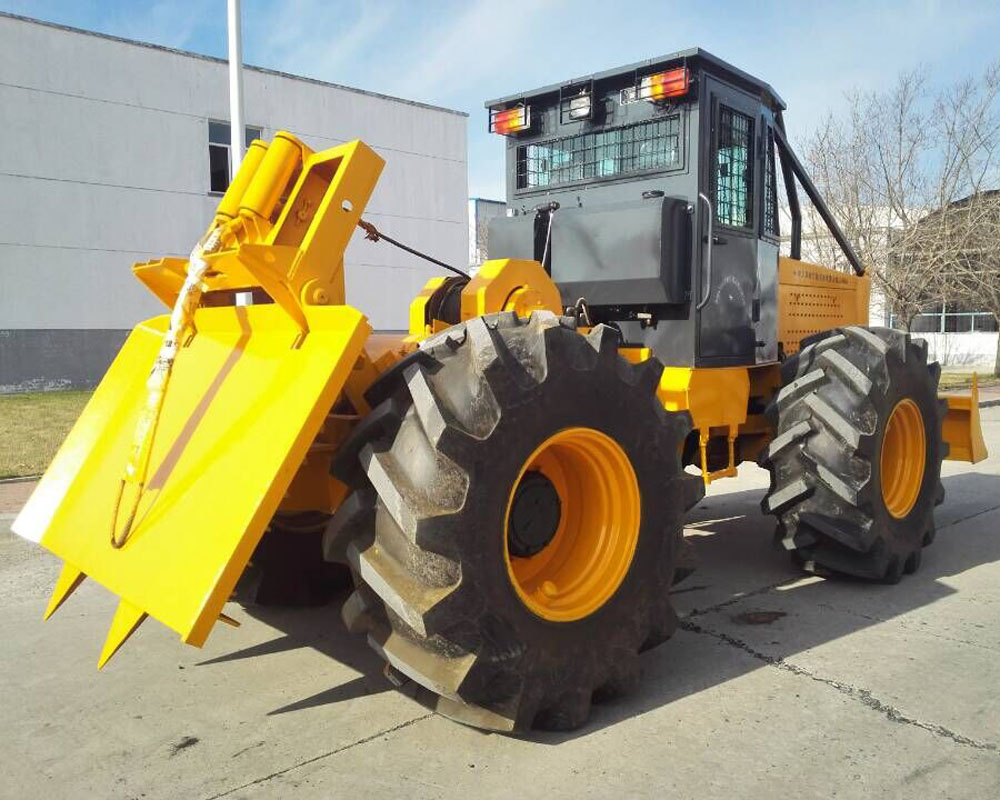

CT80A Logging Skidder
1, Whole tractor specification
—Tractor model: CT-80A
—Tractor type: Wheel type, four wheel drive, articulated steering
—Max. Qty of wood skidding: Big end of wood forward—4m3 Small end of wood forward—6m3
—Outline dimension: (L*W*H) 6040*2317*2813mm
—Wheel tread: 1850mm
—Wheel base: 2805mm
—Ground clearance: 528mm
—Structural mass: 8250 кг
—Rated tractive force: 33KN
—Max. tractive force: 46.2KN
—Suitable working slope: Lengthways direction—Max. 20 degree Transverse direction—Max. 15 даража
—The calculated running speed: 2.81-41.36km/h
2, Skidding equipment specification
—Winch rotation speed: 51-373rpm
—Dia of the steel cable of winch: 17mm
—Length of steel cable: 60m
—Track-clearer dimension: (H*W) 440*1960mm
3, Engine specification
—Engine model: LR6B3-22
—Rated power: 73.5kw at 2200rpm
—Max. fuel consumption: 228.5g/kw.h
